The Vision of Convergence: Creating Harmony from Diver-sity

How four distinct technologies found their perfect balance

‍
Sometimes the biggest innovations come not from creating something entirely new, but from finding unexpected harmony between existing elements.

The Conceptual Journey:

The vision for Maris emerged alongside Incognita as part of a larger reimagining of what Lime Ears could create. The question we asked wasn’t ‘How can we upgrade Terra?’ but rather ‘What is everything we’re capable of right now?’ After years of creating custom and universal monitors, we wanted to apply all our accumulated knowledge and experience to create something truly exceptional - to explore oceanic depths of sound that we hadn’t yet ventured into.

We challenged ourselves to push beyond conventional IEM design. Could we integrate four distinct driver technologies while maintaining coherence? Could we implement bone conductors without compromising sound quality? Could we harness the full potential of our technical and experiential expertise to create something extraordinarily powerful, yet still musical, engaging, and emotionally satisfying?

‍

The Integration Challenge:


The fundamental challenge with quadbrid architecture wasn’t simply using four different technologies, but ensuring they worked in perfect harmony. Different driver types inherently have different acoustic characteristics - combining them inappropriately would risk creating a disjointed, incoherent sound. Only through careful matching, precise crossover design, and meticulous tuning could we ensure these diverse elements would complement rather than compete with each other.

The second major challenge was physical: fitting all these components into a universal shell while maintaining comfort and ergonomics. Finding space for twelve drivers, complex crossovers, and the voltage converter required for the electrostatic drivers demanded every bit of our design expertise.

‍

The Balance Equation:


Much like an ecosystem where diverse species find balance through interdependence, each technology in Maris serves a specific purpose while supporting the others:

• Dynamic drivers provide the physical foundation and power

• Balanced armatures create the detailed midrange structure• Electrostatic drivers add spatial precision and extension

• Bone conductors introduce subtle dimensional enhancements

The magic happens not in any single component, but in how they interact with each other - how they create something greater than the sum of their parts.

‍

The Result:


What emerged was a monitor that doesn’t just excel in technical performance, but creates a uniquely engaging listening experience. Each technology contributes its strengths while being supported by the others, resulting in sound that combines massive power with extraordinary finesse - like experiencing both the raw force and intricate detail of the ocean simultaneously.

‍

The Deep Blue: Engineering
Power Without Compromise

When bass becomes both foundation and art form

‍
The quest for perfect bass reproduction in Maris presented a fascinating paradox: how to create massive power and impact while maintaining precision, detail, and musical coherence.

The Crossover Challenge:

One of the pivotal moments in Maris’s development came when we were designing the low-frequency acoustic crossover. We made a bold decision to allow a relatively high signal level to the low-frequency drivers compared to our other models. This represented a serious test for our DualCore™ Bass Engine - could it handle this power while maintaining control?The goal was to equip Maris with bass that was genuinely powerful by any standard, yet remained articulate, textured, and coherent. It needed to deliver depth like the pressure at the ocean floor, while remaining dynamic, engaging, and musical.

‍

The Closed Design Decision:


Drawing from Emil’s experience with bass cabinets and amplification, we committed to a sealed (non-vented) design for the dynamic drivers. While ported (bass reflex) designs can create the impression of more bass, they often sacrifice speed and control. Like closed bass cabinets that deliver tight, punchy low end, our sealed design ensures maximum transient response and textural detail.

This approach required exceptional performance from our dynamic drivers. They needed to deliver deep extension and power without the assistance of port-induced resonance. The dual-driver, push-pull configuration made this possible, creating bass that has both impact and nuance.

The Integration Secret:


Perhaps the most critical aspect of the bass implementation was ensuring it didn’t encroach on the midrange. With such powerful low-frequency performance, there was a risk of creating a bloated, overwhelming sound. Through careful crossover design and precise acoustic tuning, we ensured the massive bass remained perfectly controlled and integrated seamlessly with the rest of the frequency spectrum.

‍

The Final Character:


The result is a bass presentation unlike anything we’ve created before - capable of tremendous power and physical impact, yet always controlled, detailed, and musical. It provides a genuine foundation for the music, supporting rather than overwhelming the midrange and treble. The bass doesn’t just add weight to the music - it reveals the artistry in the low frequencies, from the subtle variations in finger pressure on bass strings to the complex textures of electronic productions.

‍

The Art of Balance: Finding True Musical Virtue

When measurements and emotions find harmony

‍
The implementation of electrostatic drivers in Maris represents not just a technical achievement, but a philosophical approach to how we create sound.

The Initial Temptation:

When we first began implementing electrostatic drivers, we faced an interesting dilemma. These drivers are capable of extending to extremely high frequencies - well beyond the limits of human hearing. The temptation was strong to create a perfectly flat frequency response extending far into the ultrasonic range. Such a design would look impressive on measurement graphs, potentially appealing to those who judge performance primarily by technical specifications.

But this raised a fundamental question: should we optimize for measurements, or for the actual experience of listening?

‍

The Car Analogy:


Emil often recalls teaching someone to drive a manual transmission car. When asked at what RPM to shift gears, his answer wasn’t a specific number but rather: ‘Shift when you feel the engine needs it.’ Too high, and the engine sounds strained and uncomfortable; too low, and it labors and shudders. Each car has its own optimal range where it performs best.

Acoustic transducers are similar. There’s a point where they operate at their best - where they sound natural and musical, not strained or artificially enhanced. This point isn’t always where measurement graphs might suggest.

The Listening Journey:


During Maris’s development, we spent countless hours both measuring and listening. The initial prototypes pushed the electro-static drivers to create a perfectly extended high-frequency response. On paper, these designs looked exceptional. But something didn’t feel right.Through intensive critical listening, we discovered that slightly reducing the output level of the electrostats actually improved the musicality and natural quality of the high frequencies. Paradoxically, while the measured performance might have appeared less impressive, the actual listening experience became significantly more engaging and refined.

This represents a core philosophy at Lime Ears: we tune with both measurement equipment and our ears, recognizing that the final arbiter must always be the listening experience. The high frequencies in Maris don’t just extend to impressive numbers - they have a natural, organic quality that serves the music.

‍

The Spatial Dimension:

What makes the electrostatic implementation in Maris special isn’t just frequency extension, but what these drivers contribute to spatial reproduction. Their incredibly lightweight membranes are exceptionally responsive to the subtle cues that our brains use to construct spatial images. This creates an expansive, three-dimensional soundstage with precise positioning of instruments and voices.

The result isn’t about making music artificially bright or detailed - it’s about revealing the natural space in which music was recorded. You don’t just hear more treble; you experience more accurate reconstruction of acoustic environments, from intimate jazz clubs to vast concert halls to sophisticated electronic landscapes.

‍

Evolution of Excellence: The Acoustic Waveguide Journey

How lessons from natural acoustics shaped our approach

‍
HornCraft™ represents years of refinement and acoustic research, evolved through multiple generations of our flagship models.

The Historical Context:

The journey began with our original ANIMA model, where we first implemented the concept of horn-loading for high-frequency drivers. Through ANIMA V2 and Pneuma V2, we continually refined this approach, learning valuable lessons with each iteration. Maris represents the culmination of this evolution - our most sophisticated implementation of acoustic waveguide technology.

‍

The Acoustic Challenge:

One of the most critical challenges in high-frequency reproduction is efficiently coupling the output of tiny drivers to the much larger acoustic environment of the ear canal. This impedance mismatch can cause uneven frequency response, phase issues, and harsh resonances - particularly problematic with electrostatic drivers.

The Natural Solution:

Taking inspiration from how horn instruments shape sound, we developed a precision-calculated expansion path that gradually transitions from the driver’s output to the ear canal. This horn shape isn’t arbitrary - its specific flare rate and dimensions were determined through hundreds of hours of acoustic modeling and listening tests.

The principle behind this approach has been understood for centuries by instrument makers. Just as a trumpet’s bell efficiently couples the vibrating air column to the outside world, our horn shape optimizes the transition between the electrostatic driver and your ear canal.

‍

The Resonance Management:

Perhaps the most significant benefit of Horn-Craft™ is how it manages resonances. Instead of allowing a few large resonance peaks (which create audible ringing and harshness), it redistributes acoustic energy into multiple smaller resonances. This creates a smoother, more natural high-frequency presentation while preserving all the detail and extension of the electrostatic drivers.

The Integration Challenge:

Implementing HornCraft™ in Maris presented unique challenges due to the presence of both electrostatic drivers and balanced armatures. Each required its own optimized acoustic path, yet these paths needed to converge coherently at the output. The final design represents a sophisticated compromise between these competing requirements - a precision- engineered solution that serves both driver types equally well.

‍

The Result:

The implementation of HornCraft™ in Maris doesn’t announce itself with artificial brightness or hyper-detail. Instead, it creates a foundation for natural, effortless high-frequency reproduction. Cymbals shimmer with realistic texture. Vocal harmonics float in space with proper dimensionality. Recording environments reveal their true character. This isn’t about making high frequencies more prominent - it’s about making them more truthful.

The Subtle Science of Dimensional Sound

‍

When measurable details create immeasurable experiences

‍
The implementation of bone conductors in Maris represents one of our most fascinating acoustic explorations - a journey into how subtle changes in time-domain behavior can create profound effects on our perception of sound.

The Experimental Phase:

During Maris’s development, we extensively tested various bone conduction technologies - different sizes, positions, and implementation methods. Unlike conventional drivers which primarily move air, bone conductors create vibrations throughout the entire structure of the earphone. This presented both unique opportunities and significant challenges.

Contrary to common assumptions, the bone conductors in Maris don’t primarily contribute to low-frequency extension. The aluminum housing is too substantial to efficiently transmit the kind of vibrations that would create perceptible bass enhancement. Instead, something far more interesting emerged during our testing phase.

‍

The Time-Domain Discovery:

Through extensive measurements, we discovered that the bone conductors introduced subtle but measurable changes in time-domain behavior. Waterfall plots (which show how sound decays over time) revealed fascinating modifications to the temporal characteristics of sound. These weren’t simple frequency response changes, but alterations to how sound evolves over microseconds.

What made this discovery particularly intriguing was the disconnect between what we could measure and what listeners reported. The measurable changes were subtle, yet many listeners described significant improvements in spatial reproduction - reports of more organic, tangible, and engaging presentation of space.

The Perceptual Hypothesis:

This phenomenon highlights something fascinating about human hearing: our brains are extraordinarily sensitive to timing relationships between sounds. The bone conductors create subtle interactions with the main driver array, modifying micro-details of timing and phase. While these modifications might appear minor on measurement equipment, they provide additional spatial cues that our brains use to construct three-dimensional sound images.It’s similar to how stereoscopic vision works - two slightly different images combine in our brain to create depth perception. The bone conductors provide additional information that enriches our perception of spatial relationships in the music.

‍

The Integration Challenge:

Implementing this system required careful balancing. Too much contribution from the bone conductors would risk compromising the coherence of the main driver array. Too little, and the benefits would be imperceptible. Finding this sweet spot took months of careful adjustment and testing.

The Result:

The final implementation creates what many listeners describe as a more holographic sound presentation. Recording spaces feel more realistic and three-dimensional. Instruments and voices have more tangible presence in the soundstage. Reverb tails and room ambience become more apparent and natural.

These effects don’t announce themselves loudly - they reveal themselves gradually as you spend time with the music. Like layers in a fine painting, they add depth and dimension to the listening experience, inviting you to explore ever deeper into the music.

‍

The Art of Precision Engineering

When every micron matters

‍
The physical construction of Maris represents the culmination of everything we’ve learned about precision manufacturing and acoustic engineering.

The Material Foundation:

Like Terra and Incognita, Maris begins life as a solid block of aircraft-grade aluminum. This isn’t just about aesthetic appeal or durability - aluminum provides the perfect acoustic foundation for our driver array. Its rigidity minimizes unwanted resonances while its thermal properties help dissipate heat from the drivers, ensuring consistent performance.

‍

The Manufacturing Journey:

Each Maris shell is precision-shaped by 5-axis CNC machines, creating both the external form and internal acoustic chambers. This digital precision is essential for maintaining consistency between units and ensuring optimal driver positioning. The surface is then glass bead blasted to achieve its sophisticated deep blue finish - a process that provides both visual refinement and a tactile quality that enhances the user experience.

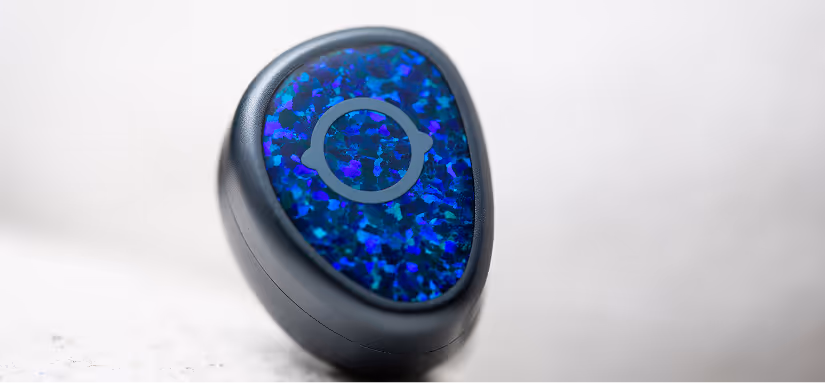

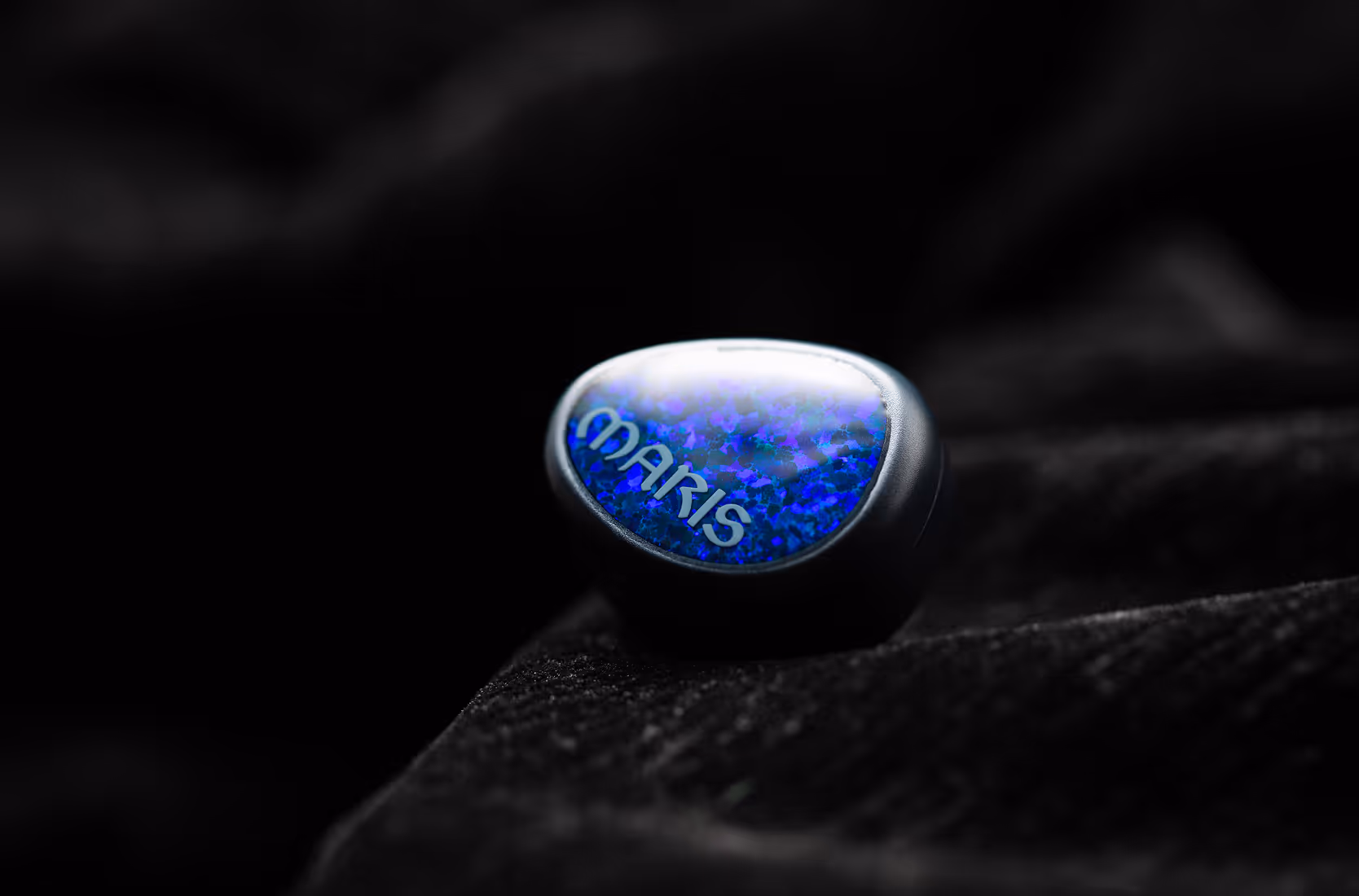

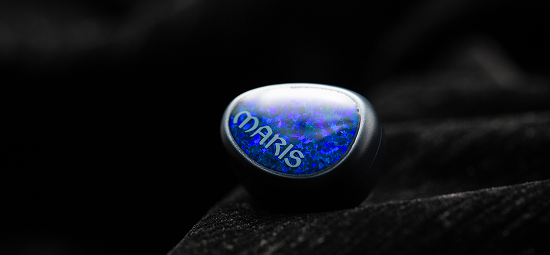

The Color Story:T

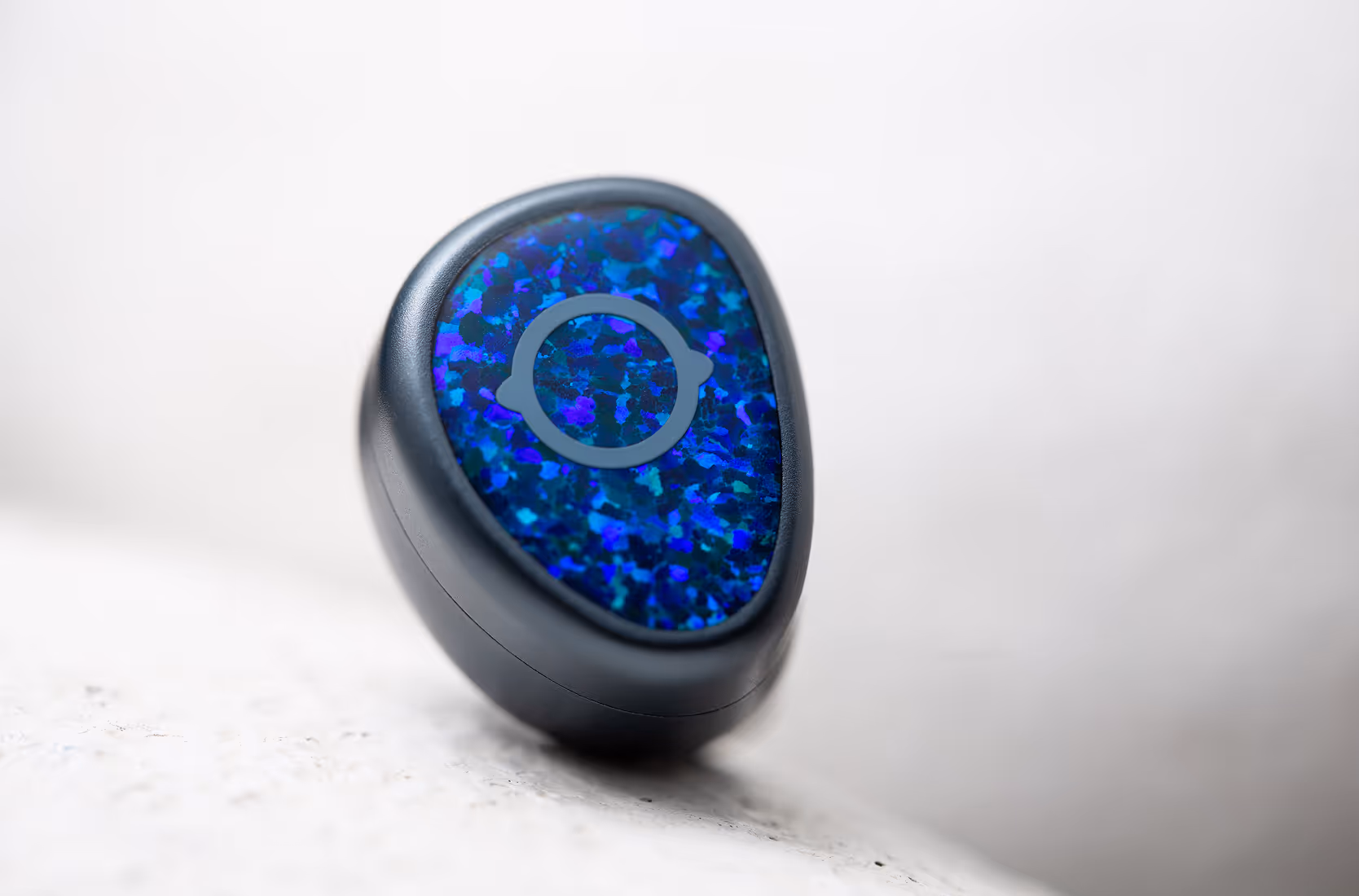

he choice of deep blue for Maris wasn’t arbitrary. We experimented with several blue tones, seeking one that would evoke the depths of northern seas. As a Polish company, we appreciate the beauty of warm, clear waters, but wanted to capture something deeper and more mysterious - the kind of ocean that doesn’t immediately reveal its secrets, that requires true exploration to discover what lies beneath. The final color represents this philosophy - inviting yet challenging, familiar yet mysterious.

‍

The Ergonomic Evolution:

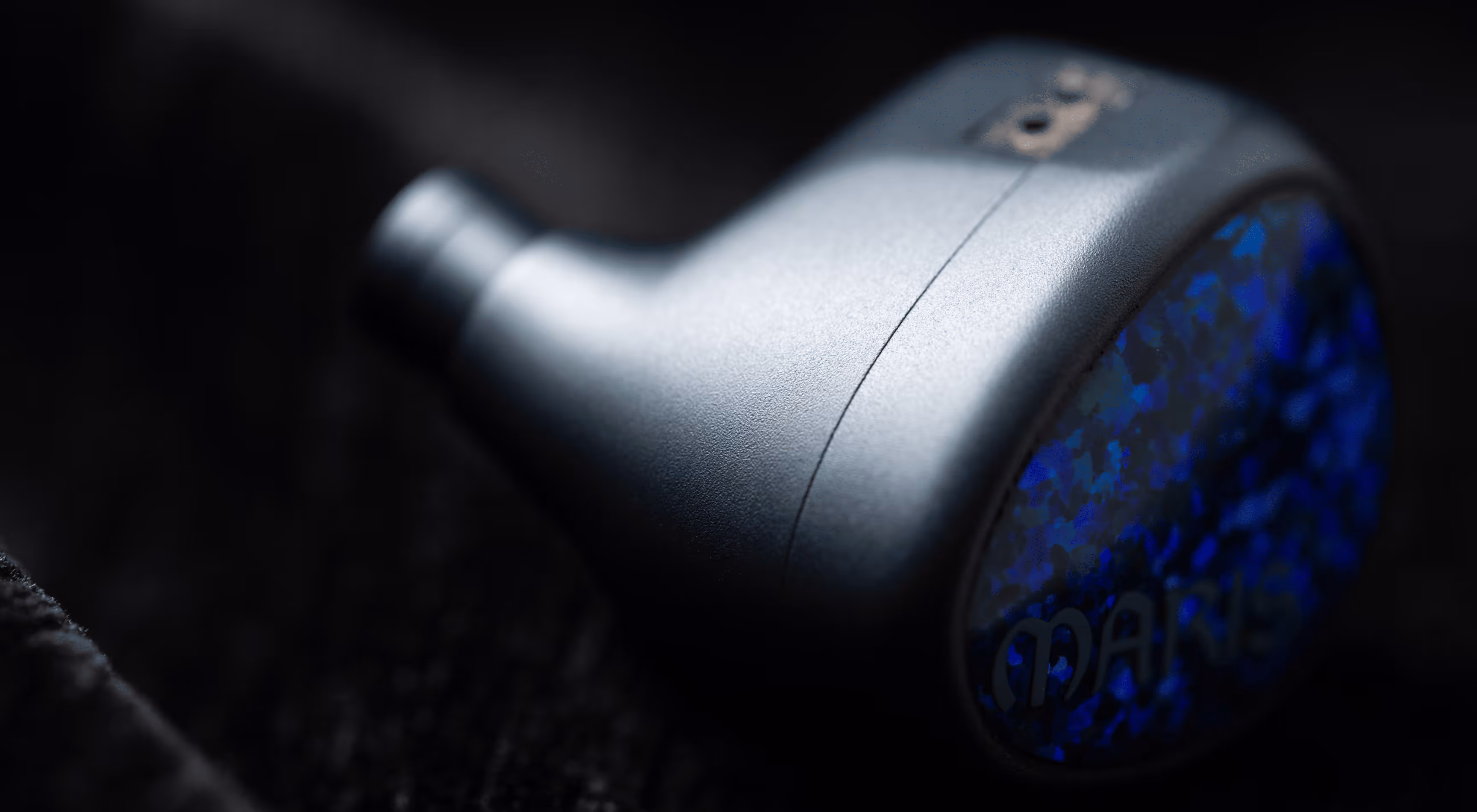

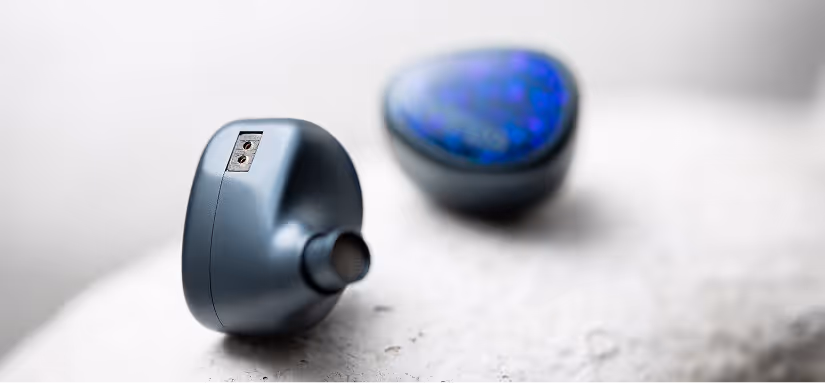

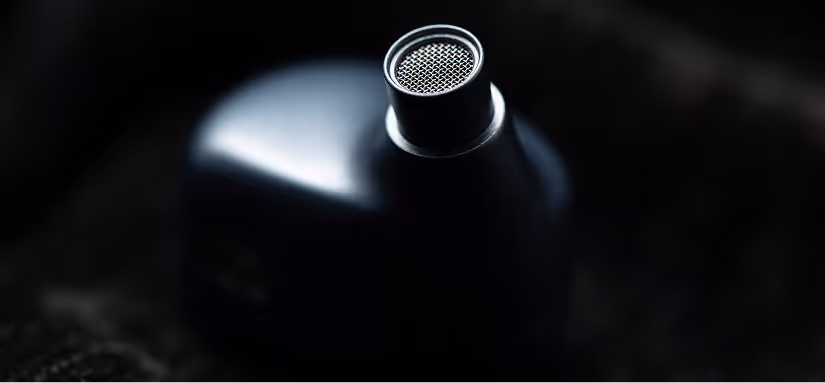

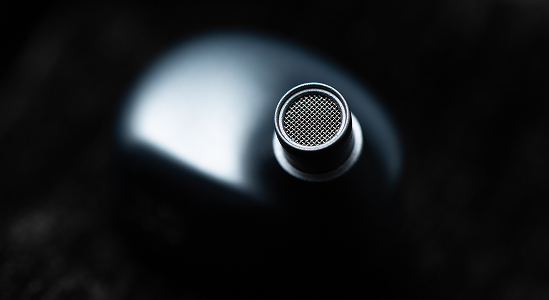

One subtle refinement in Maris compared to Terra and Incognita is the nozzle design. Since we weren’t constrained by placing a high-frequency driver in the nozzle tip (as the electrostats are positioned differently), we were able to slightly reduce the nozzle size. This small change significantly enhances comfort during extended listening sessions - an example of how technical decisions and user experience considerations influence each other.

The Integration Challenge:

The internal construction of Maris presented unprecedented challenges. Finding space for twelve drivers, complex crossover networks, and the voltage converter for the electrostatic system required pushing our design capabilities to their limits. The final internal architecture represents a masterpiece of acoustic engineering - every cubic millimeter serves a purpose, every component positioned for optimal performance.

‍

‍

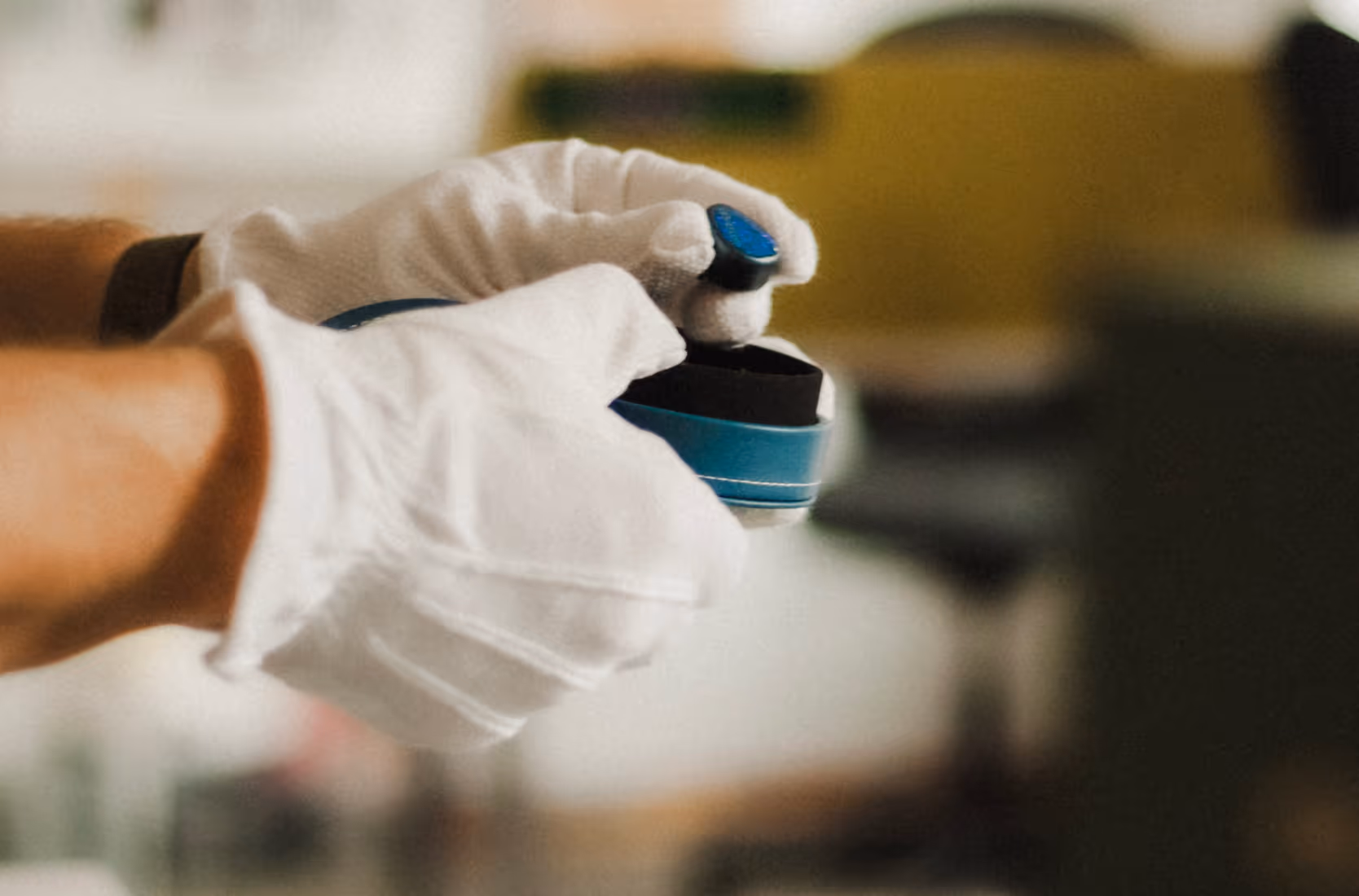

The Assembly Process:

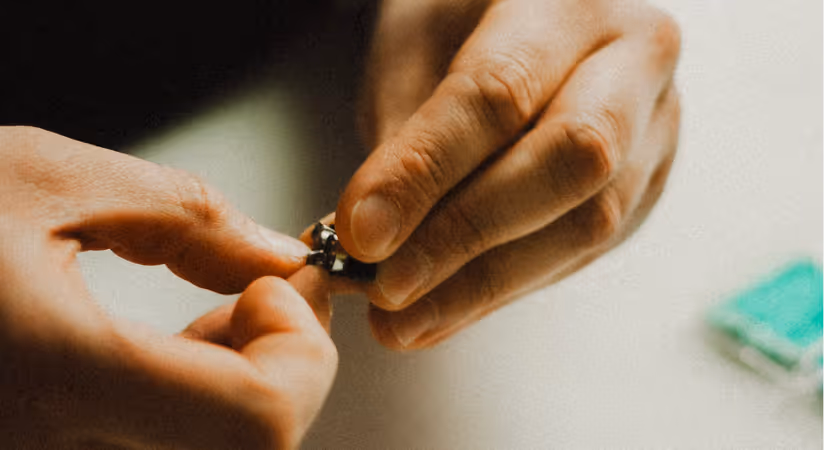

Each Maris is assembled by hand in our Warsaw atelier, where skilled technicians integrate the components with micrometer precision. This isn’t a process that can be automated - it requires the human touch, expertise, and judgment that comes from years of experience. Every unit under-goes extensive testing and verification before it leaves our workshop, ensuring it meets our exacting standards.

The Result:

The finished product represents something beyond mere manufacturing - it’s a fusion of engineering precision and artisanal craft. From the sophisticated blue aluminum exterior to the complex internal architecture, every aspect of Maris’s construction serves both acoustic performance and user experience. This isn’t just a product - it’s a statement of what’s possible when engineering meets artistry.

The Ocean’s Voice: Discovering Musical Truth

‍

When transparency reveals new dimensions

‍
The sonic character of Maris represents our most ambitious effort to balance technical excellence with musical engagement - to create something that excels not just in measurements, but in emotional connection.

The Philosophical Approach:

From the beginning, our goal for Maris was to create something extraordinarily musical and transparent, capable of revealing the deepest layers of recordings while maintaining emotional engagement. We wanted powerful, warm bass combined with exceptional midrange clarity and natural, extended highs - all integrated into a coherent, immersive experience.

‍

‍

The Tuning Journey:

The tuning process for Maris followed our established methodology of alternating between measurement and critical listening. This iterative approach ensures both technical accuracy and musical satisfaction. However, Maris presented unique challenges due to its complex driver configuration.I

ntegrating four different driver technologies required finding the perfect balance point where each could contribute its strengths without dominating the overall presentation.

The Discovery Effect:

One of the most fascinating aspects of Maris’s character emerged during extended listening sessions. Even after years of designing monitors and countless hours listening to familiar test tracks, Emil found himself discovering new aspects of beloved recordings. This wasn’t just about hearing more detail - it was about perceiving production decisions, microphone techniques, and mixing approaches that had previously gone unnoticed.

‍

‍

The Differentiation Factor:

While less transparent monitors tend to homogenize recordings - making mediocre productions sound acceptable - Maris takes the opposite approach. It dramatically differentiates between recordings, revealing their true character. This can be surprising, even occasionally unsettling, when familiar tracks suddenly expose production flaws or unusual choices that were previously masked.

However, this same quality makes well-produced recordings sound absolutely extraordinary. Every element of the production chain becomes apparent - the quality of instruments, microphone selection, preamp choices, console charac- teristics, room acoustics - creating an unprecedented level of insight into the recording process.

The Psychoacoustic Perspective:

This approach to sound reproduction connects to a deeper understanding of how we perceive sound. Humans are extraordinarily sensitive to the acoustic characteristics of objects and environments. We don’t just hear signals or frequency curves - we hear objects interacting with each other in physical space. Our perceptual systems are finely tuned to extract information about these interactions - whether something is close or distant, large or small, strained or relaxed.

Just as we recognize when a human voice sounds strained or a mechanical system is operating outside its optimal range, we can perceive when audio components are being pushed beyond their comfort zone. Maris is tuned to work within the optimal range of each driver technology, creating a presentation that sounds natural and unforced, even during the most demanding passages.

‍

‍

The Balance Point:

Finding the perfect operating point for each driver is similar to finding the optimal learning zone for humans - not so easy that there’s no challenge, not so difficult that progress becomes impossible. It’s about balance, about finding that perfect fulcrum point where everything works in harmony.

The Result:

What emerges from this approach is a monitor that doesn’t just reproduce music - it reveals its essence. Like the ocean itself, Maris shows you both the surface beauty and the mysterious depths of your favorite recordings.It invites you to explore further, to discover new dimensions in familiar music, to experience the full richness of the art form.This is what happens when technical excellence serves musical truth - when transparency becomes not just an engineering goal, but a gateway to deeper musical understanding.”
